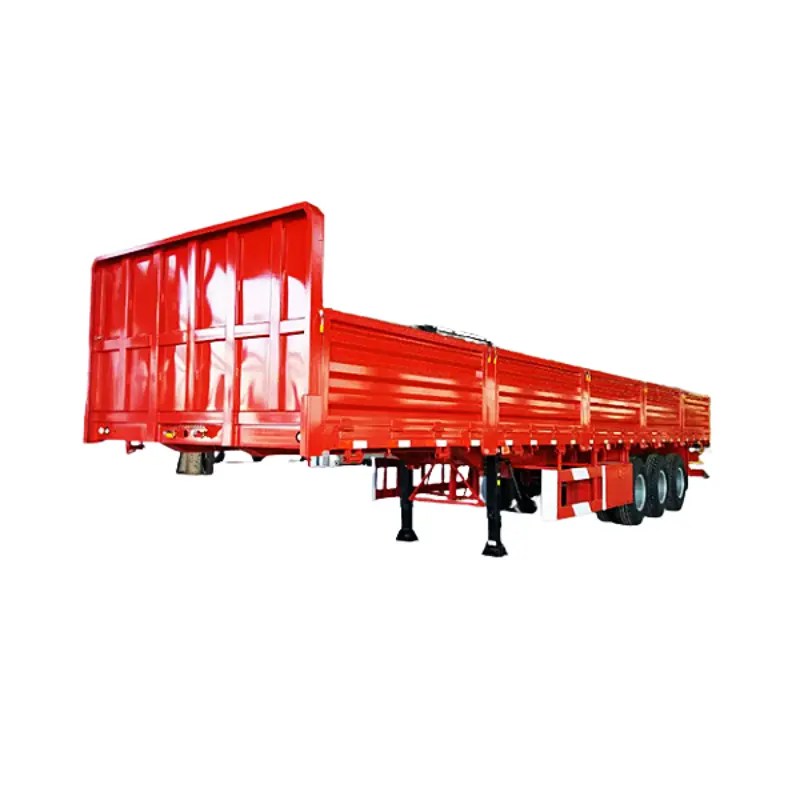

3 Axles 40 Foot Container Tray Cargo Semi Trailer with Side Cover

$8,500.00 $8,200.00

Quantity

Experience the pinnacle of container transport efficiency with our High Quality 3 Axles 40 Foot Container Tray Cargo Semi Trailer with Side Cover. This versatile semi-trailer is specifically designed to transport standard 40-foot containers while offering the added benefit of a side cover for secure and weather-resistant cargo containment.

The container tray design allows for easy loading and unloading of standard 40-foot containers, streamlining your logistics operations and reducing turnaround times.
Equipped with a side cover, this semi-trailer provides enhanced cargo security and protection against the elements, making it suitable for a wide range of cargo types.
Whether you’re moving goods between ports, warehouses, or distribution centres, our container tray cargo semi-trailer ensures smooth and reliable container transportation.

Our High Quality 3 Axles 40 Foot Container Tray Cargo Semi Trailer with Side Cover is built to the highest standards, offering durability and safety for your cargo transport needs.

Constructed with premium materials and reinforced components, this semi-trailer is engineered to withstand heavy loads and demanding road conditions, ensuring long-lasting performance.
The side cover is made from high-quality materials that provide excellent weather resistance and secure containment of cargo during transit.
Equipped with advanced braking systems and suspension, this trailer offers safe and controlled handling, providing peace of mind during your cargo transport operations.

pecification	Overall dimensions	1260025002600mm	Internal dimensions
	Height of traction pin	1300mm	Front/rear suspension
	wheelbase	1310mm	Track width	1840mm
Frame body configuration	Item	texture of material	Specifications
	Girder	Q345	Height 500mm, width 140mm, upper wing plate 14mm, lower wing plate 16mm, vertical plate 8mm;
	beam	Q345 channel steel	100mm channel steel
	Side beam	Q345 channel steel	16 # channel steel
	floor	Q235 manganese plate	3mm tread plate
	Container lock	12 Lock
parts	suspension	3-axle mechanical suspension	Leaf spring	90 * 13 * 10-6 frames
	Axle specification/brand	13T/1840 Fuhua	Number of axles	3
	Tyre specification/brand	12R22.5	Number of tires	12
	Steel ring specification/brand	9.0-22.5	Number of steel rims	12
	Outrigger specification/brand	28T/Yahua	Traction pin specification	50 # or 90 # interchangeable type
Brake system	Brake valve brand	WABCO	Specification/quantity of brake chamber	T30/30-6
Brake system	Brake system	Emergency braking system, air braking, double air pipeline, 6 T30/30 brake chambers, 2 40L air reservoirs
Electrical circuit system	Circuit socket	7-hole socket	Voltage	24
Electrical circuit system	lamps and lanterns	LED light	Two rear tail lights (including two steering lights, two brake lights and two constant lights), eight side lights and two rear triangular reflectors;
enclosure	hold-all	1 toolbox	tool	Shaft end wrench, rocker
enclosure	Spare wheel holder	1
colour	According to customer requirements
